Seatronx 19" Pilothouse Touch Screen Display
Back Order
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
On Back Order
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
$5,502.24

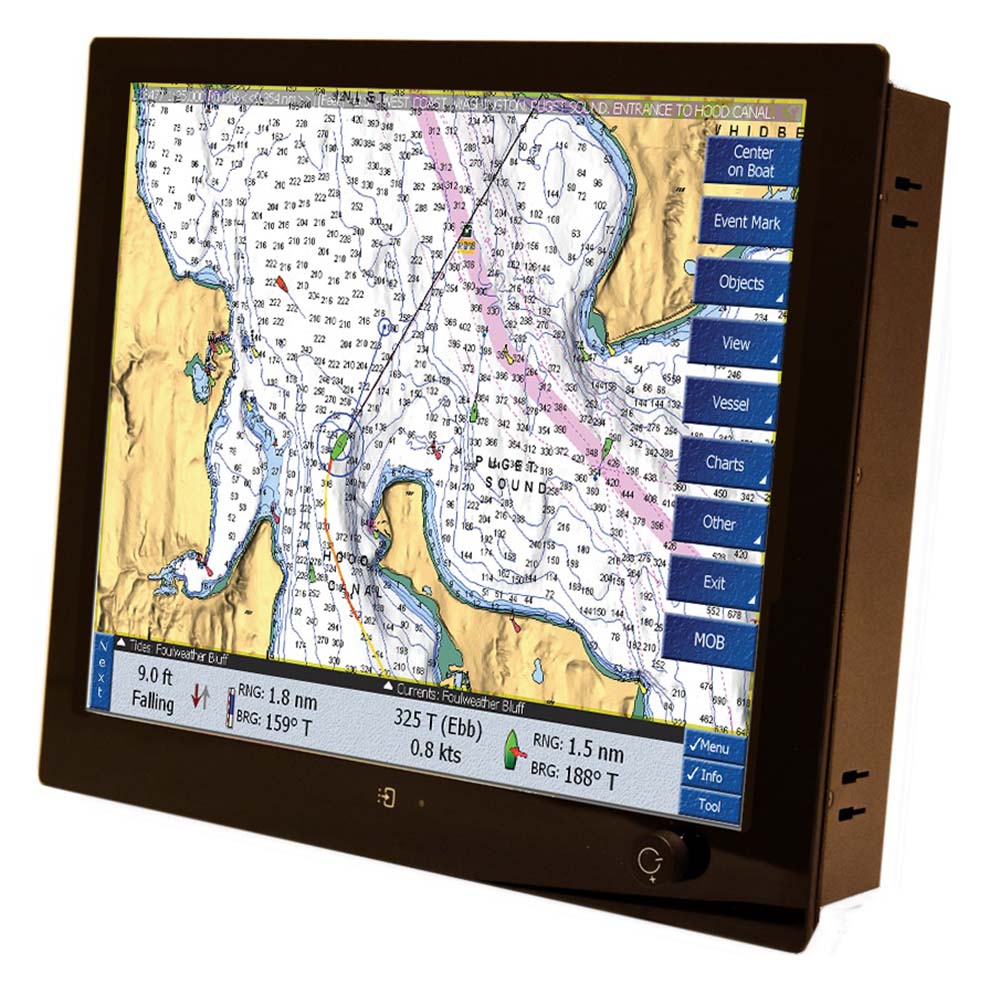

19" Pilothouse Touch Screen Display
Seatronx glass bridge displays are the perfect fit for those looking for rugged design combined with attractive styling.
The pilothouse displays feature up to 300 nits of low-power LED backlighting, which makes them a perfect fit for pilothouses where brightness is not a problem. They can also be completely dimmed for nighttime use using the front panel control.
Features:
- Mounting - Panel Mount , Vesa Mount
- Dimensions - 17.03" x 14.85" x 2.28"
- Cutout Dimensions - 16.32" x 14.14" x 2.40"
- Projected Capacitive Touch
- Optical Bonding
- Optional Remote Control
Technical Specifications:
- Diagonal (active area) Inch - 19"
- Native Resolution (Pixels) - 1280x1024
- Contrast Ratio - 1000:1
- Brightness - 300
- Viewing Angle (left, right) - 89, 89
- Viewing Angle (up, down) - 89, 89
- Backlight Dimming - 0 - max
- Backlight Lifetime (Hrs) - 50,000
- Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp
- Power Source - 9-34V + and -
- Power Consumption (AMPS @ 24VDC) - 3.5
- Inlet Plug DC Power - Screw Terminal
- Sealing Front - IP68 with Potentiometer
- Operating Temperature (°C) - 0 to 70
- Storage Temperature (°C) - -20 to 70
Product Specifications
| Dimensions | 31" L × 22" W × 7" H |
|---|---|
| Shipping Weight | 22 lb |
| Country of Origin | NETHERLANDS |
| Harmonized Code | 85285100 |
Documentation
| Quick Guide | Download PDF |
|---|---|
| Owner's Manual | Download PDF |
Accessories
- SKU 85536 — MFG# 000-15100-001
