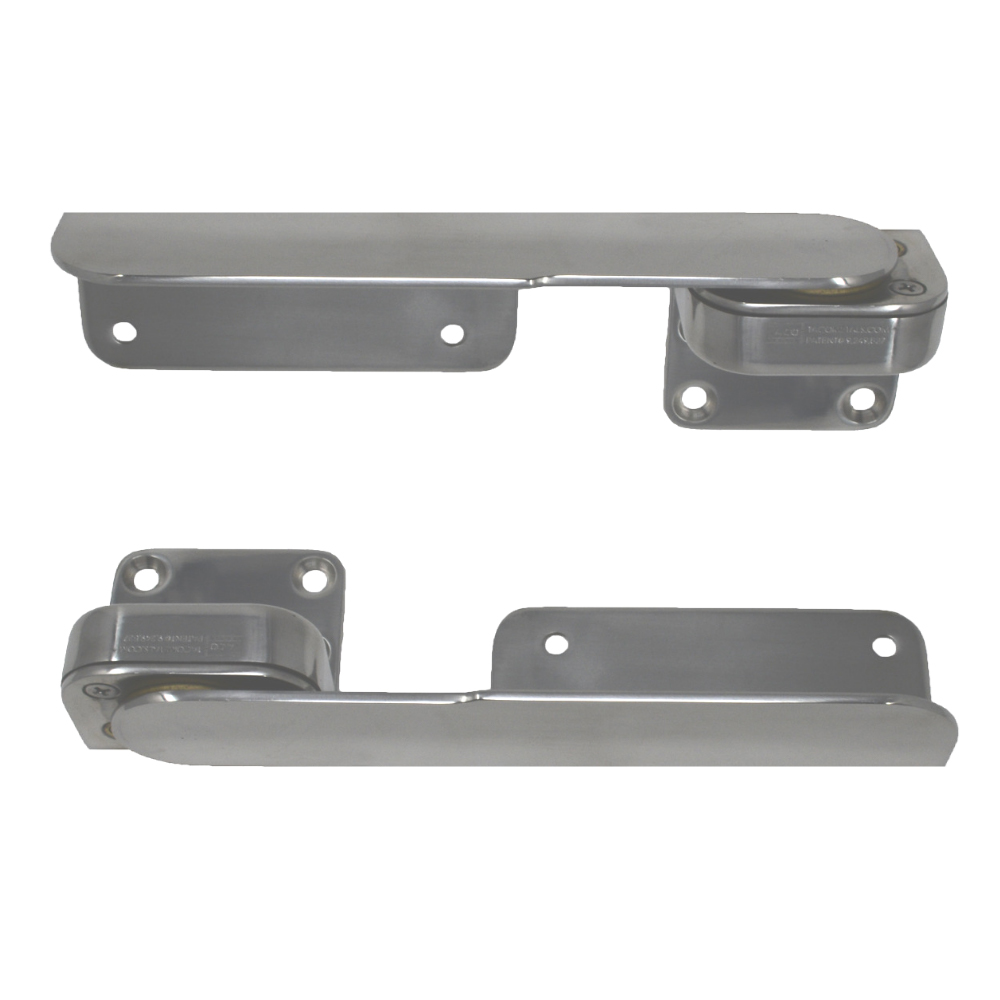

Command Ratchet Hinges - 9-3/8" - Polished 316 Stainless Steel - Pair
Constructed from high-grade stainless steel and brass, our Command Ratchet Hinge is ideal for sunpads, bolsters and lounge backrests. This heavy-duty specialty hinge has a 15-degree locking inclination and ratchets up to four positions.
Features:
- Highly polished marine-grade stainless-steel Type-316L
- All brass bearings for durability
- Meets ABYC H-31 standards class B* application, 250lb ft of torque load for pair
- 15-degree locking inclination increments starting at 30 degrees
- Easily adaptable to many applications
- Designed for up to 4" thick cushions
- Returns to horizontal position at 100 degrees
- Countersunk for #10 fastener or 1/4-20 bolt
- Sold in pairs
- 5-year limited warranty
Product Specifications
| Dimensions | 10" L × 4" W × 4" H |
|---|---|
| Shipping Weight | 4.35 lb |
| Country of Origin | CHINA |
| Harmonized Code | 7326.90.85.88 |
Documentation
| Brochure | Download PDF |
|---|
