Egis Class T Fuse Block 225-400 A - Sealed
Back Order
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
On Back Order
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
$77.62

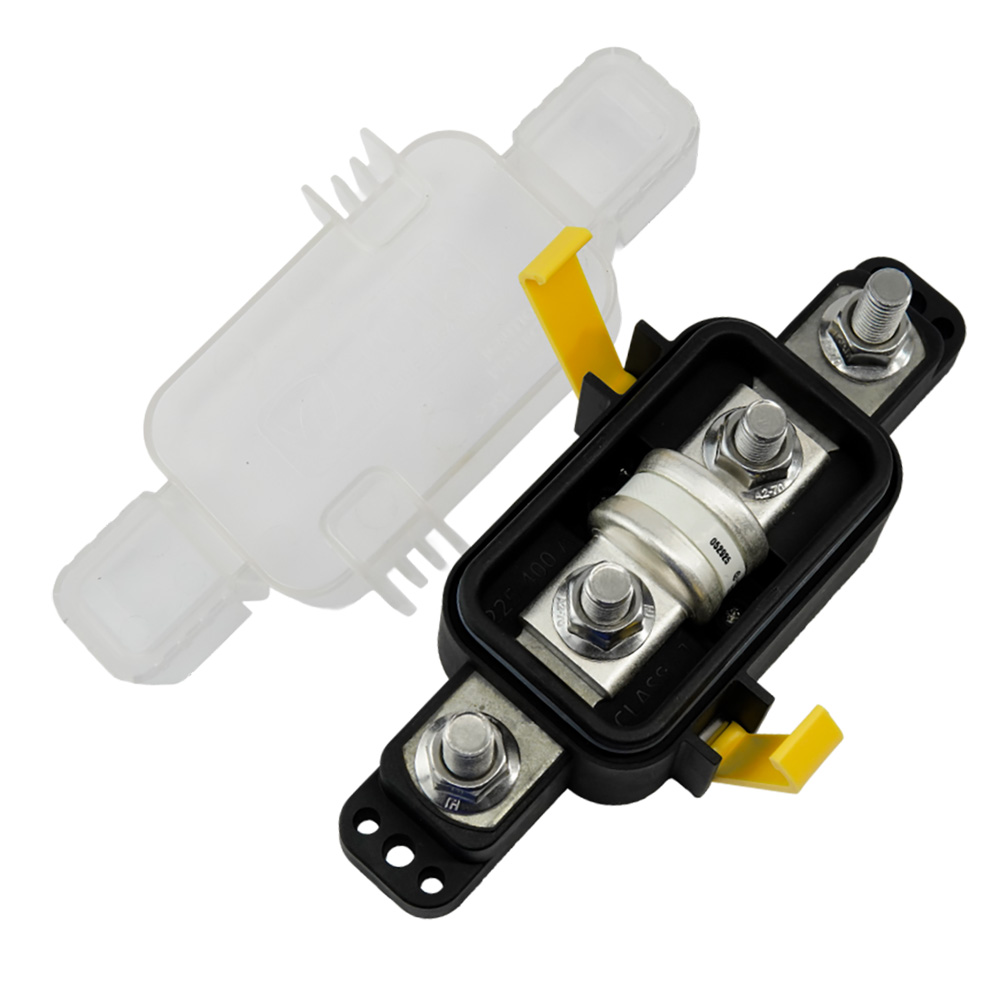

Class T Fuse Block 225-400 A - Sealed
Applications/Problems This Solves:
- Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, which would otherwise land on the fuse tab itself.
- Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats.
Features:
- Tin-plated copper busbar delivers superior electrical performance with minimal voltage drop.
- Stainless Steel Self-Locking Hardware ensures robust connections & long-term connection reliability.
- Bulletproof construction from glass-filled nylon delivers the highest longevity in demanding environments.
- 4 Year Warranty
Specifications:
- Maximum Amperage: 225-400A
- Max Voltage: 80 VDC
- Ingress Protection Ratings: IP66, IP67, IP6K9K
- Mounting Holes: 4x #10 (M5) & 2x 1/4" (M6)
- Mounting Screw Max Torque: 50 in-lbs (5.5 N-m)
- Busbar Material: Tin-Plated Copper
Product Specifications
| Dimensions | 8" L × 6" W × 3" H |
|---|---|
| Shipping Weight | 1.2 lb |
