Blue Sea 8184 AC Main + 6 Positions/DC Main +15 Positions
Back Order
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
On Back Order
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
$2,171.51

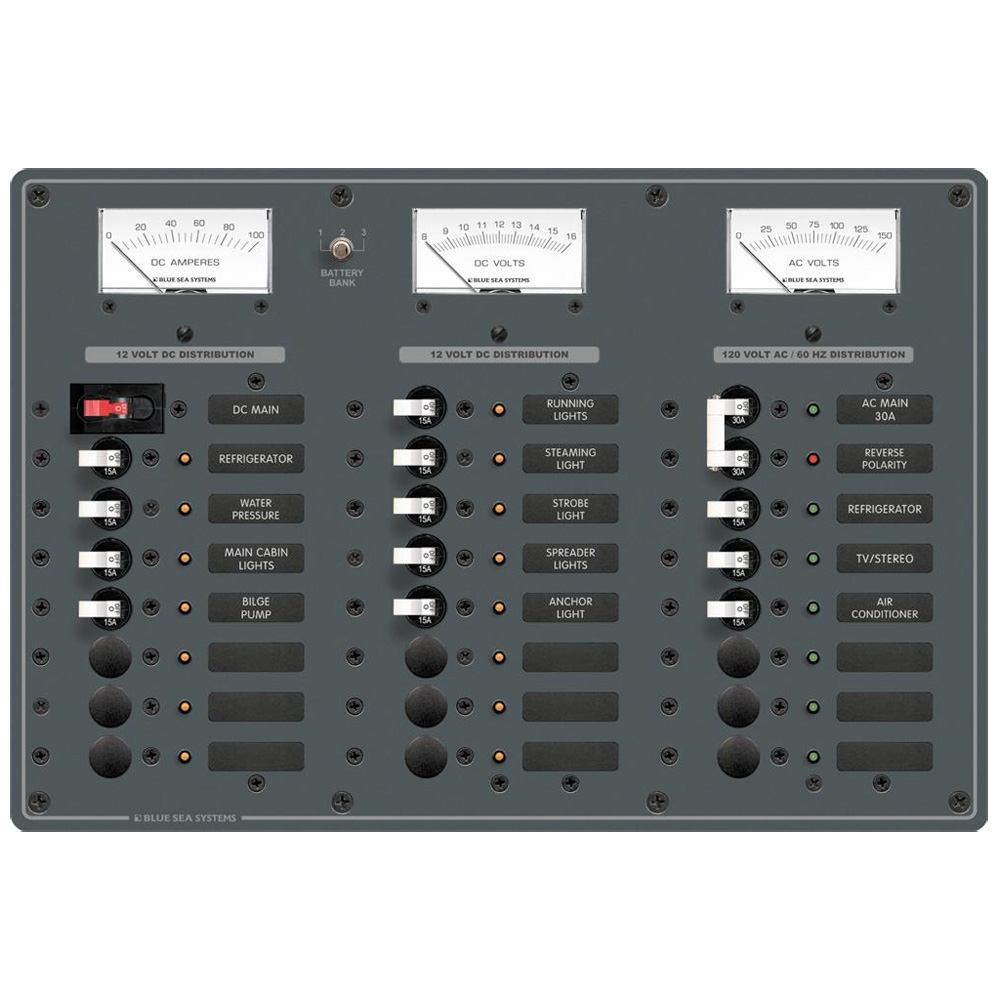

8184 AC Main + 6 Positions/DC Main +15 Positions
Switches Color: White
Features:
- All AC and DC buses installed and fully pre-wired
- Label backlighting pre-installed
- ON - indicating LEDs installed in all circuit positions
- 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch
Specifications:
- Positions: 6 AC / 15 DC
- Nominal Voltage: 230v AC / 12v DC
- Height: 10"
- Width: 14.75"
- Depth: 3"
Included:
- (3) 7299 A-Series White Toggle Circuit Breaker - Single Pole 8A (AC Branch)
- (1) 7294 A-Series White Toggle Circuit Breaker - Double Pole 16A (AC Main)
- (1) 9354 AC Voltmeter - 0 to 250v AC (AC Meter)
- (9) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A (DC Branch)
- (1) 7250i Circuit Breaker CA1 100A Red IP (DC Main)
- (1) 8017 DC Analog Ammeter - 0 to 100A w/ Shunt (DC Meter)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
| Dimensions | 15" L × 7" W × 3" H |
|---|---|
| Shipping Weight | 8.9 lb |
| Country of Origin | UNITED STATES |
| Harmonized Code | 8537.10.90.00 |
Documentation
| Owner's Manual | Download PDF |
|---|
