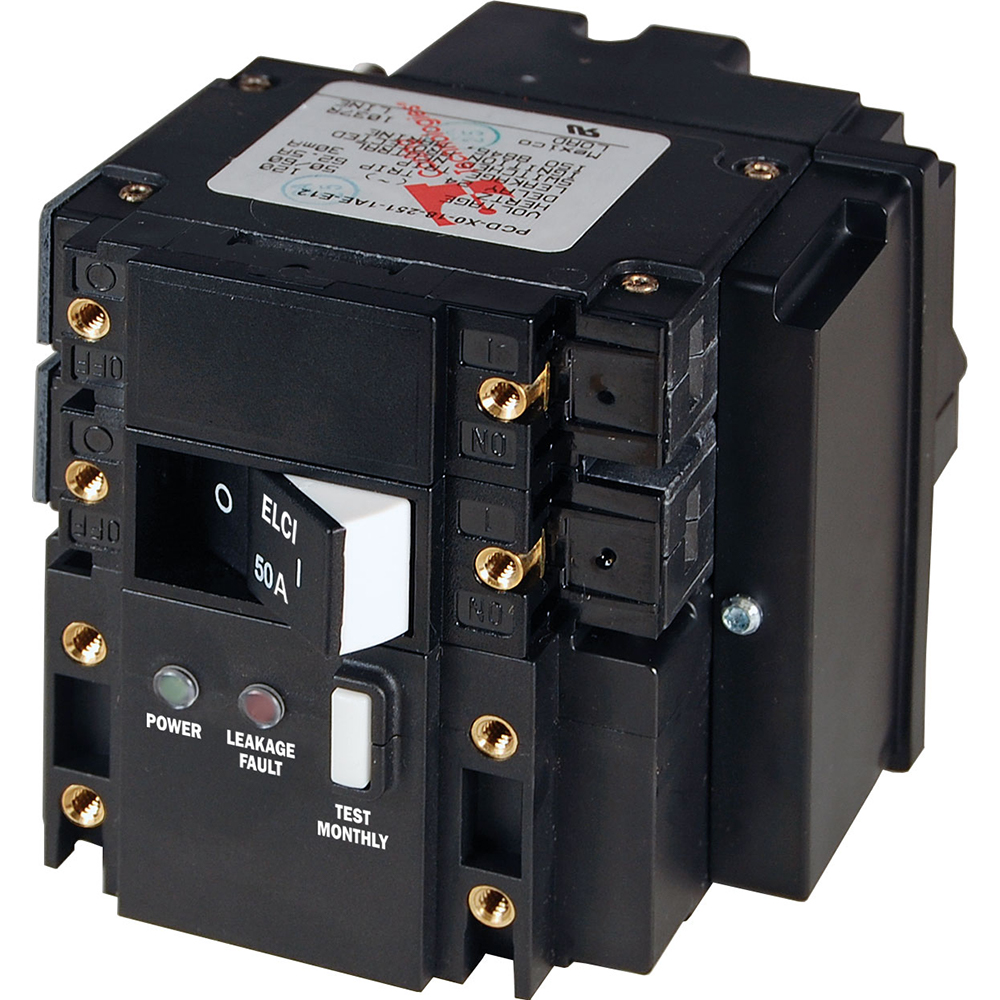

Blue Sea C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A
Back Order
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
On Back Order
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
$1,306.07
C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A
Features:
- Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
- Meets UL 1500 external ignition protection requirements
- Trips on short circuit, overload, or leakage to ground
- Front panel mount—installed in a power distribution panel
Specifications:
- Amperage: 50A
- Actuator Style: Flat Rocker
- Poles: 2
- Ignition Protected: Yes
- Max Voltage: 120VAC per pole
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 5000A
- Minimum Operating Temperature: -35 degrees C
- Max Operating Temperature: 66 degrees C
- Leakage Trip Amps: 30mA
Product Specifications
| Dimensions | 6" L × 5" W × 5" H |
|---|---|
| Shipping Weight | 1.2 lb |
| Country of Origin | MEXICO |
| Harmonized Code | 8536.20.00.40 |
Documentation
| Installation Guide | Download PDF |
|---|
