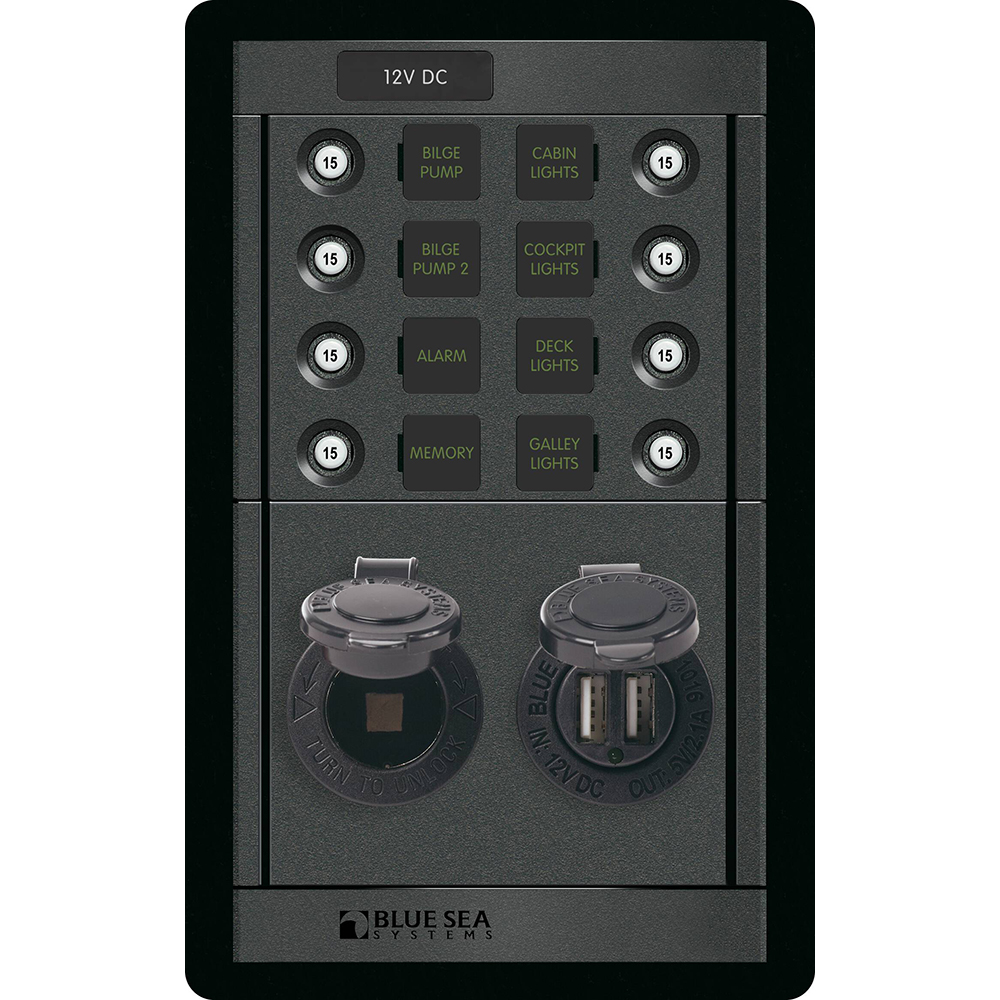

Blue Sea 1498 - 360 Panel - 8 Position 12V Panel w/Dual USB & 12V Socket
Back Order
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
On Back Order
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
$557.27
1498 - 360 Panel - 8 Position 12V Panel with Dual USB & 12V Socket
Part of the Blue Sea Systems Battery Management Panels. This DC Branch Circuit Breaker panel will distribute current from a high amperage source to lower amperage circuits.
DC sockets and USB charging are integrated into a popular sized circuit protection panel.
Features:
- ON-indicating LEDs
- Backlit label positions
Technical Specifications:
- Positions - Eight (8)
- Nominal Voltage - 12V DC
- Maximum Amperage - 90A
- Circuit Breaker Type - 8 Push Button (15A)
- USB Output - 12/24V Dual USB
- Socket Output - 12V Dash socket
- Dimensions - (H x W x D) - 7.75" x 4.88" x 3.5" (197 x 124 x 89mm)
In the Box:
- 1498 Panel
- Instruction Manual
*Sold as an Individual
Product Specifications
| Country of Origin | UNITED STATES |
|---|---|
| Harmonized Code | 8537.10.91.50 |
Documentation
| Quick Guide | Download PDF |
|---|
