Blue Sea 8080 Single Circuit ON/OFF - Plus Main
Back Order
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
On Back Order
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
$506.87

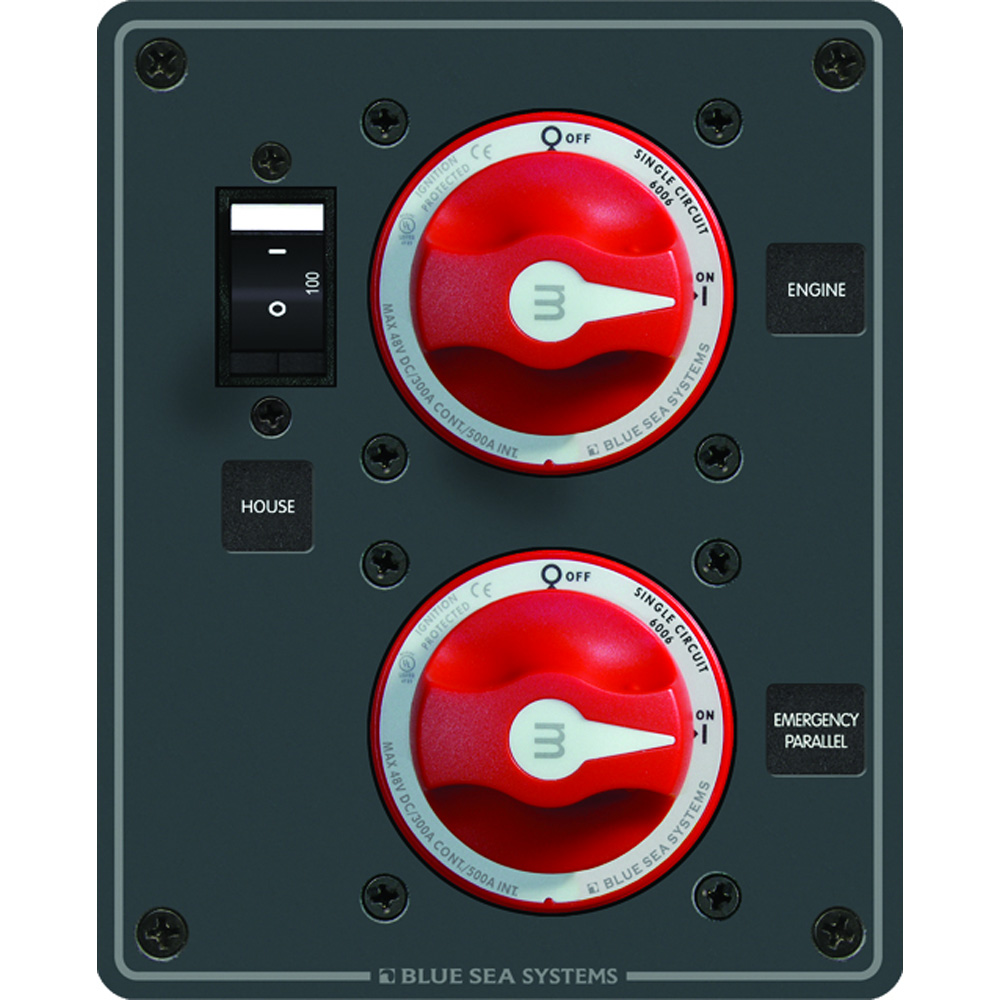

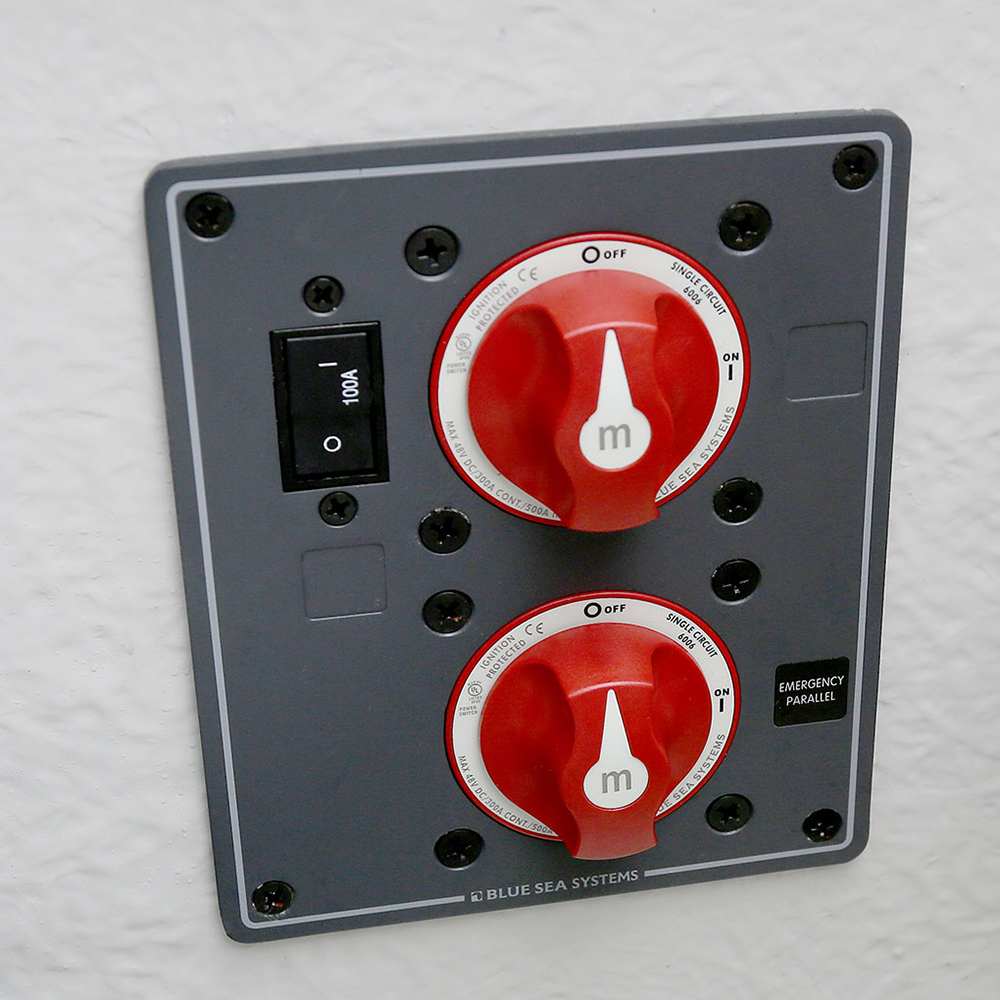

8080 Single Circuit ON/OFF - Plus Main
Installed Components:
- 2 6006 m-Series Switches
- 1 100A c-Series Flat Rocker Circuit Breaker
Features:
- Isolates batteries and provides DC main circuit protection
- Ignition protected - Safe for installation aboard gasoline powered boats
- Isolates the Engine circuit from the House circuit
- Simplifies battery switch operation
- Protects electronics from sags and spikes caused by engine cranking
- Discharges batteries independently
- Addition of an Automatic Charging Relay automates charging of both batteries
- Enables a failed Start battery to be isolated from the electrical system and both House and Start loads to be operated from the remaining battery bank
- Provides main circuit protection for DC House power system
- Enables a failed House or Start battery bank to be isolated from the electrical system and both House and Start loads to be operated from the remaining battery bank
- Simplifies battery switch operation
- Isolates Start circuit from House circuit
- Protects electronics from sags and spikes caused by engine cranking
- Ignition protected - Safe for installation aboard gasoline-powered boats
- Addition of an Automatic Charging Relay automates charging both batteries
- Allows independent battery discharge
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
| Dimensions | 12" L × 7" W × 5" H |
|---|---|
| Shipping Weight | 2.3 lb |
| Country of Origin | UNITED STATES |
| Harmonized Code | 8537.10.90.00 |
Documentation
| Owner's Manual | Download PDF |
|---|
