Momentary Push Button Switch - 420427-1 - 354-4204271F1
Special Order
Toronto, ON
Vancouver, BC
Special Order
Special order items are not kept in regular stock and may take additional time to process and ship.
Availability, warehouse timing, and delivery dates can vary by supplier and destination.
Please contact us if you need timing confirmed before ordering.
$48.11
Access Code Required
Enter your access code to unlock purchasing for this item.

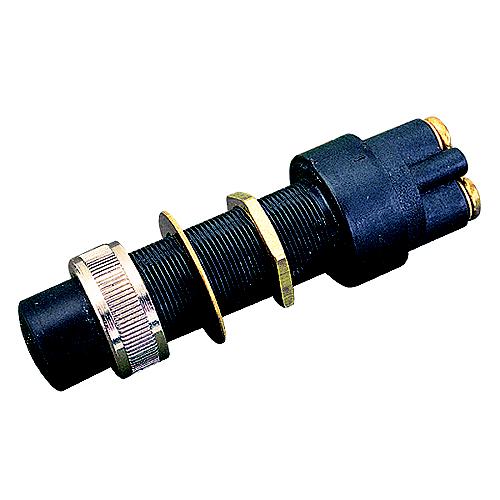

This momentary Push Button On/Off switch is constructed of corrosion resistant glass reinforced polyester housing with an elastomeric rubber internal gasket and ultrasonic welding for increased water resistance. Compact behind-dash panel dimensions allow for mounting in confined spaces. 2 Boss copper alloy screw terminal contacts. Overall length: 2-7/8". Mounting stem: 1-7/16L x 5/8"-32 thread. Maximum panel thickness: 1-1/8". 30A @ 12VDC. Includes rubber boot nut.
| Part #: | 354-4204271 |
| Manufacturer: | SEA-DOG LINE |
| Manufacturer Part #: | 420427-1 |
| UPC: | 035514423755 |
| Order In Multiples Of: | 1 |
| Positions | Mom On/Off |
| Terminals | 2 Boss |

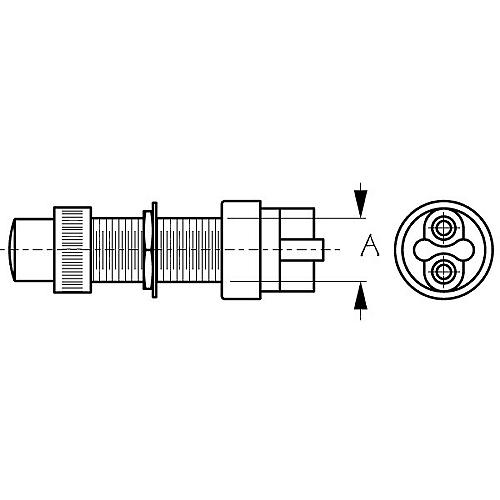

| A | 5/8" |
| Max Panel Thickness | 1" |
| Panel | 1-1/8" Max |
