Maretron

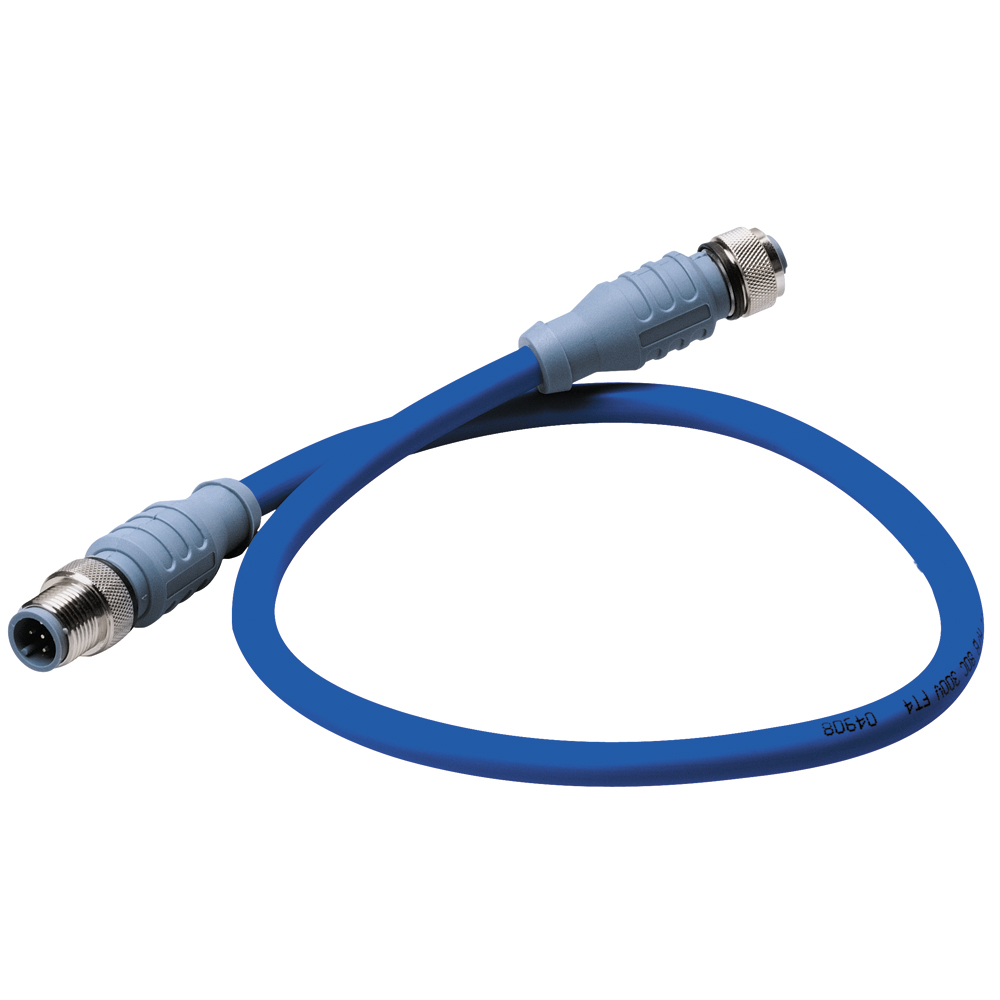

Maretron Mid Double-Ended Cordset - 8 Meter - Blue

SKU 47018 MPN DM-DB1-DF-08.0 UPC 873804001975 MFR Maretron

Back Order
Toronto, ON Vancouver, BC NJ, Warehouse FL, Warehouse

On Back Order

This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.

$100.80
Canadian Dollars
My Wishlist
Compare
Ask a question about this product
Back to: NMEA Cables & Sensors
Maretron Mid Double-Ended Cordset - 8 M Blue

Mechanical:
  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59"

    Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V

    Cable

  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: PE (data pair), PVC (power pair)
  • Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

    ENVIRONMENTAL
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

    APPROVALS
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC 61162-3

    Product Specifications

    Dimensions8" L × 8" W × 2" H
    Shipping Weight2 lb
    Country of OriginMX
    Harmonized Code8544.42.00.00
