Lopolight Masthead/360-Degree Light - 2NM - Silver Housing w/FB Base
Back Order
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
On Back Order
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
$1,119.66

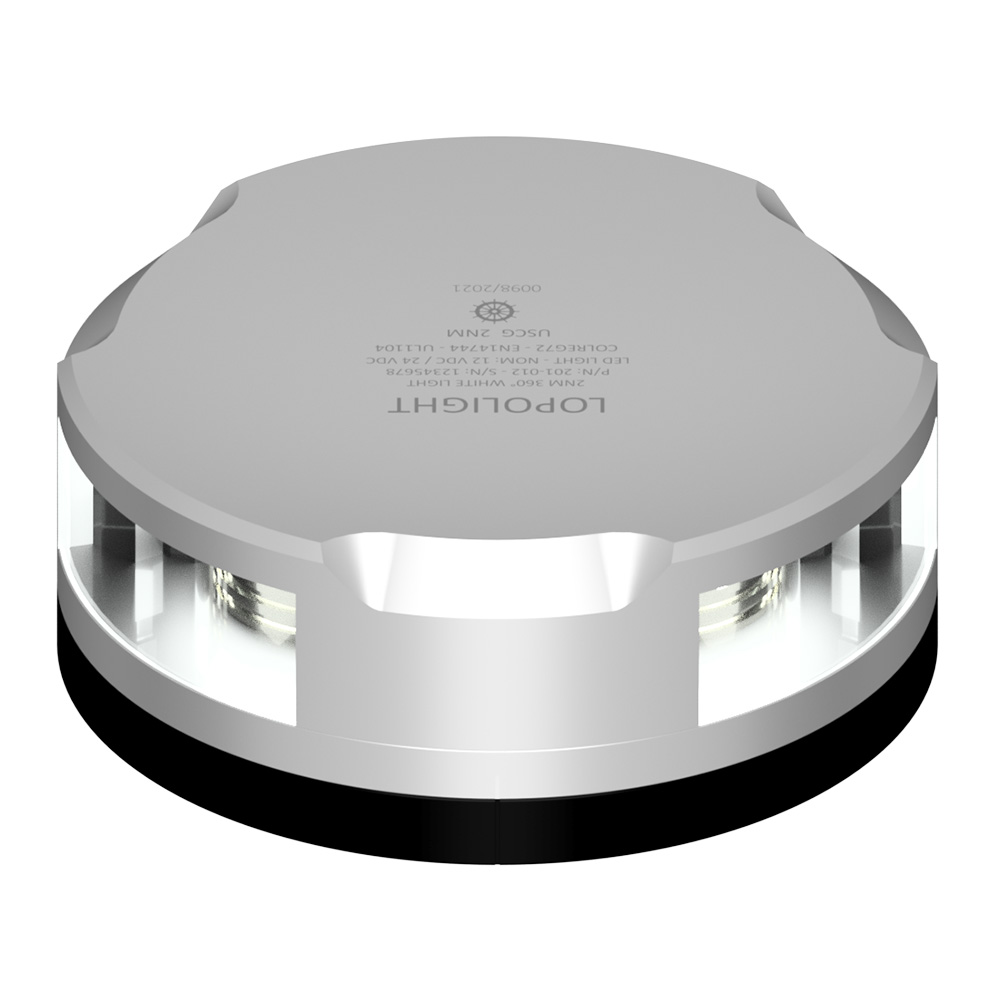

Masthead/360-Degree Light - 2NM - Silver Housing with FB Base
This white 360-degree/masthead light has a silver housing, is horizontally mounted, and has a two-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.
Features:
- Silver anodized aluminum housing
- 0.75m cable is included
Specifications:
- Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
- Mounting: Horizontal
- EAN: 5704438043510
- Min. Feed Wire Gauge: 0.5mm2 AWG22
- Light Color: White
- Visibility: 2NM
- Included In the Package: 1 Navigation light, pre-cabled with 0.75 meter shielded marine grade cable and installation guide
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- IP rating: IP68
- Connection: 0.75m cable
- Current Consumption (mA @ 24VDC): 156
- Current Consumption (mA @ 12VDC): 225
- Dimensions Metric: Ø92.5mm x 36mm
- Dimensions Imperial: Ø3.6" x 1.4"
- Operating Temperature: -25 degrees C to 55 degrees C
- Operating Voltage: 10-32VDC
- Power Draw (W): 3
- Vessel Size: Under 12 meters, 12-20 meters, and 20-50 meters
Product Specifications
| Dimensions | 4" L × 4" W × 3" H |
|---|---|
| Shipping Weight | 1.15 lb |
| Country of Origin | DENMARK |
| Harmonized Code | 8541.40.20.00 |
Documentation
| Quick Guide | Download PDF |
|---|---|
| Installation Guide | Download PDF |
